CHASSIS        -        EXTERIOR        -        CONSTRUCTION

When you want the flexibility to travel on the tarmac or onto gravel, corrugations or tracks then the Australian built legend kick back mid range off-road caravan is your best choice.

Legend Mid-Range Kick Back Off-Road , The 150mm A-frame connects to an overengineered Legend Truss design S&M Chassis which is also Hot Dipped Galvanised.

The whole caravan is taken care by Cruisemaster 3500kg, DO35 hitch to the tow vehicle. Suspension is Cruisemaster’s most robust system in its XT unit, as this Model only comes in Single & Tandem Axle, Cruise Master now can be upgrade up to 4.5t ATM , and Stopping power comes from 12in Electric Brakes, and the soft ride is managed by Level 3 AirBags System.

We are committed to use all Brass fittings in our full range instead of PVC connectors this gives you a next level of protection without adding extra weight on protection.

This van also comes with few rated Recovery points which will be handy for when recovery is needed.

Our Legend caravans are built with an aluminium frame construction which are put together with hanrob self-piercing riveting system this allows for some movement over extreme conditions to avoid cracking. The frame components of the roof and walls are lock-bolted together as well as to the chassis to create a solid and enduring entity, Self-piercing rivets also eliminate heat problems associated with spot welding pure aluminum and aluminum alloys, which melt below 800 C. And, the fasteners are compatible with galvanized and coated surfaces, minimizing damage and eliminating recoating or replating, unlike spot welding.

A lockbolt provides approximately 100% bearing area in the locking grooves. Using a nut and screw there is only 30% – 35% contact and the applications is vibration sensitive.

When it comes to the self-loosening effect under vibration load we are all aware of the Junker test, which monitors a bolted joint as it loses its preload when subjected to shear loading caused by transverse vibration. Compared to conventional bolts and nuts, lockbolts demonstrate superior vibration resistance.

Our Kick Back and all Legend Caravans are built with one Piece Honey-Comb light weight Floor Rot free, the roof is specially constructed with one piece fiberglass sandwich panels which is rot free , Exceptional Strength, Hail resistant also gives you premium insulation Thermal and Acoustic protection.

Exterior cladding is a composite panel of aluminium sheets over an insulating polyethylene core. Voids in the walls are filled with AIR-CELL Insuliner — a closed cell fire-resistant core inside reflective foil to temper heat and cold.

INTERNAL        -        PLUMBING        -        ELECTRICAL

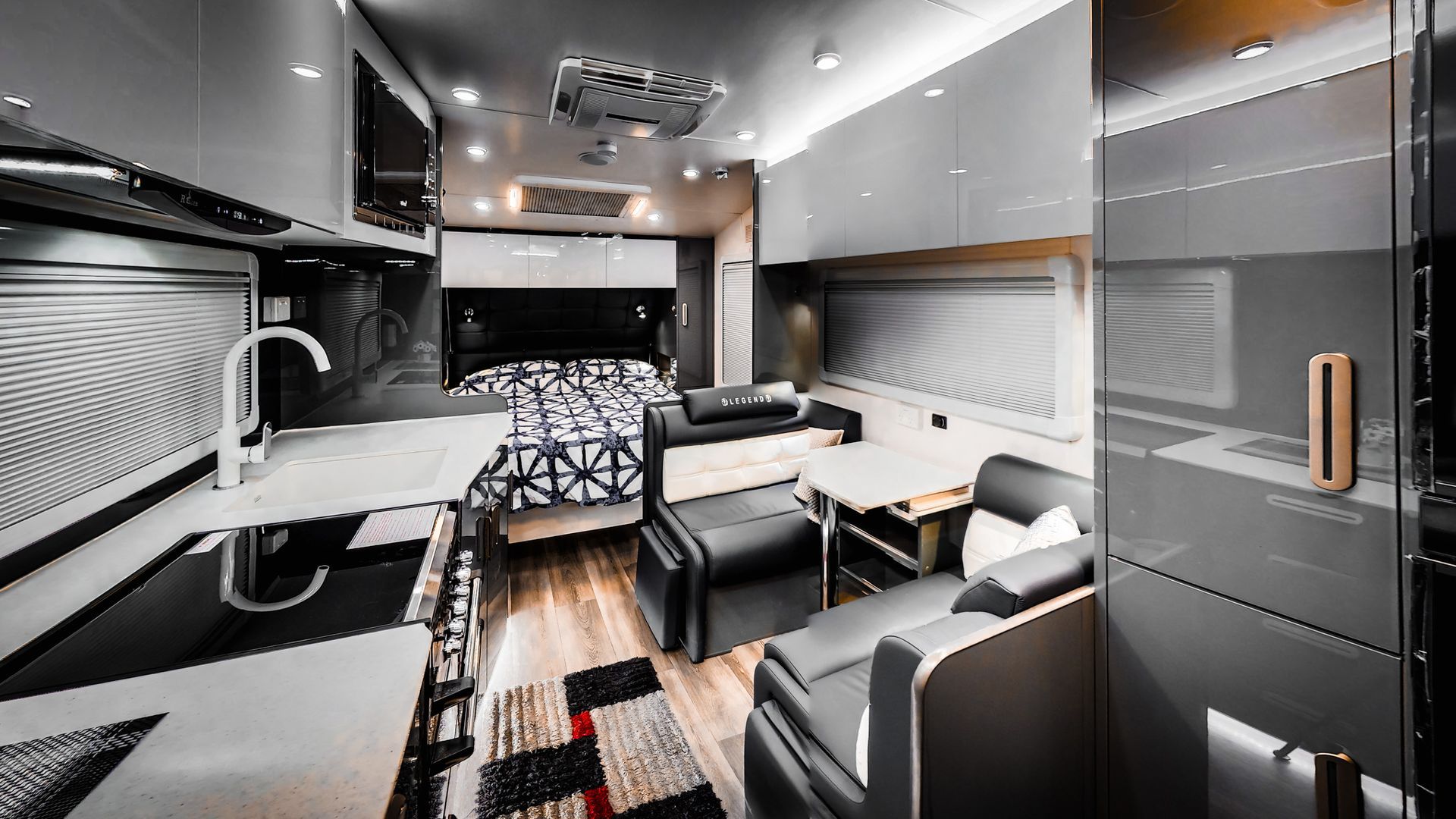

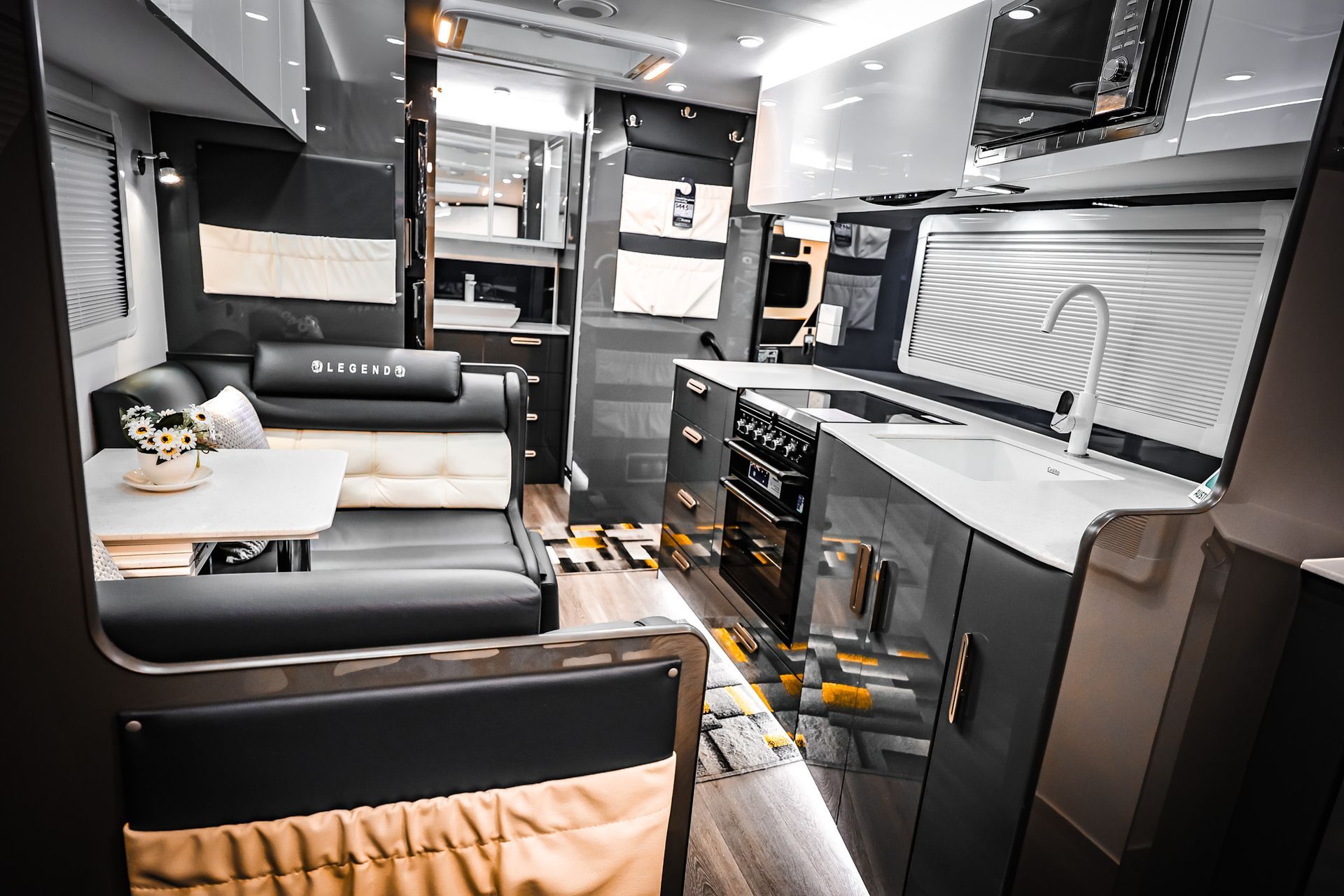

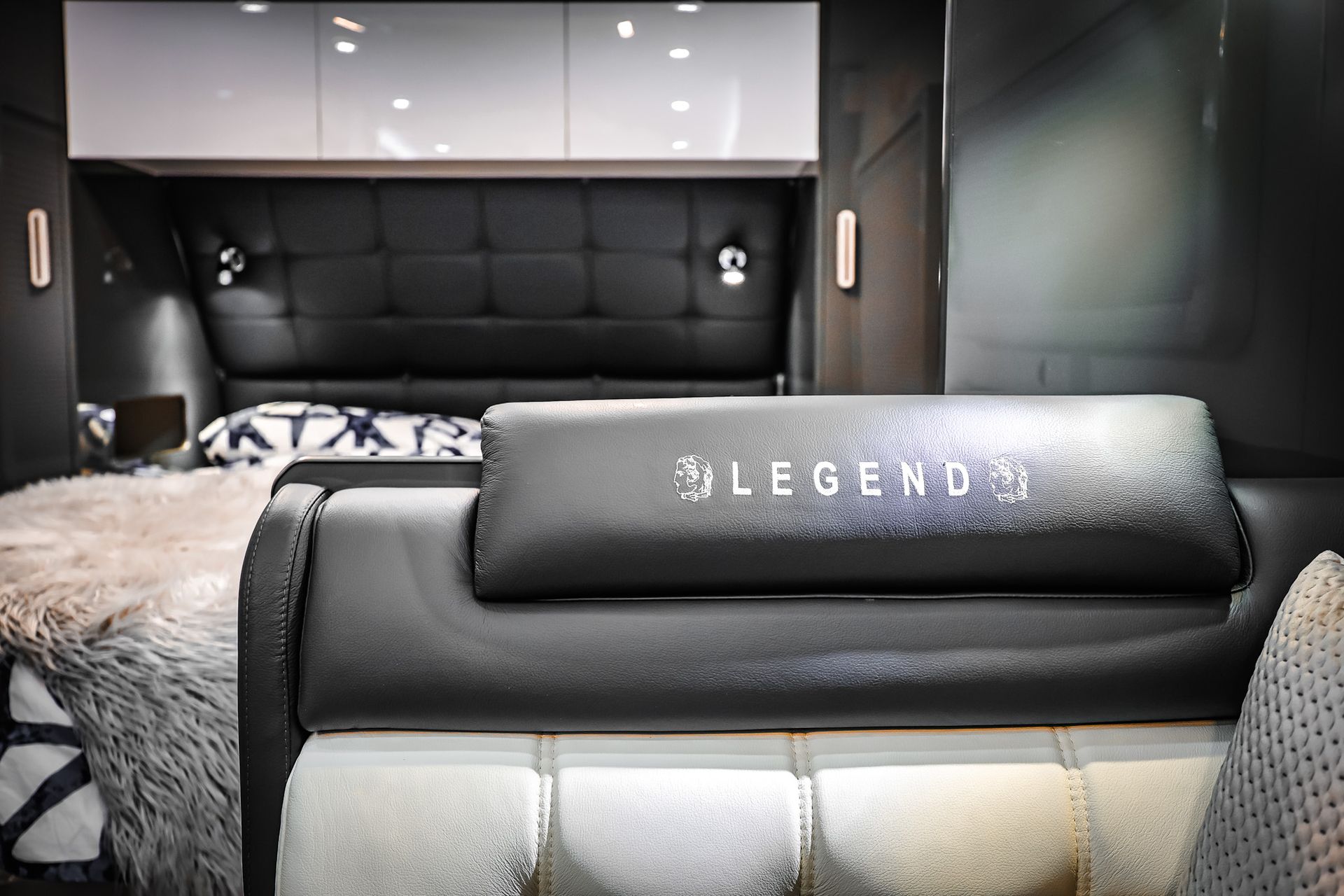

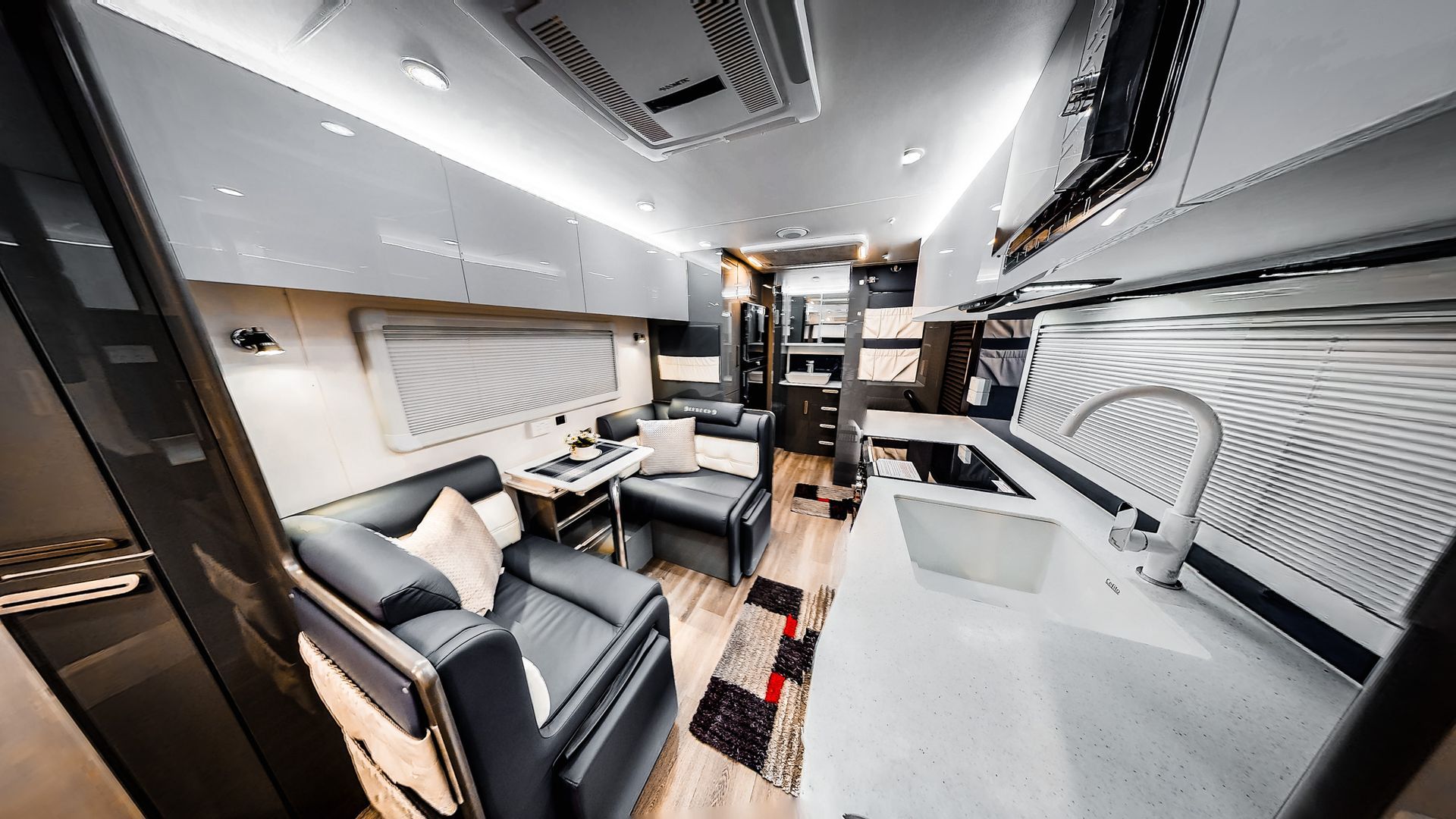

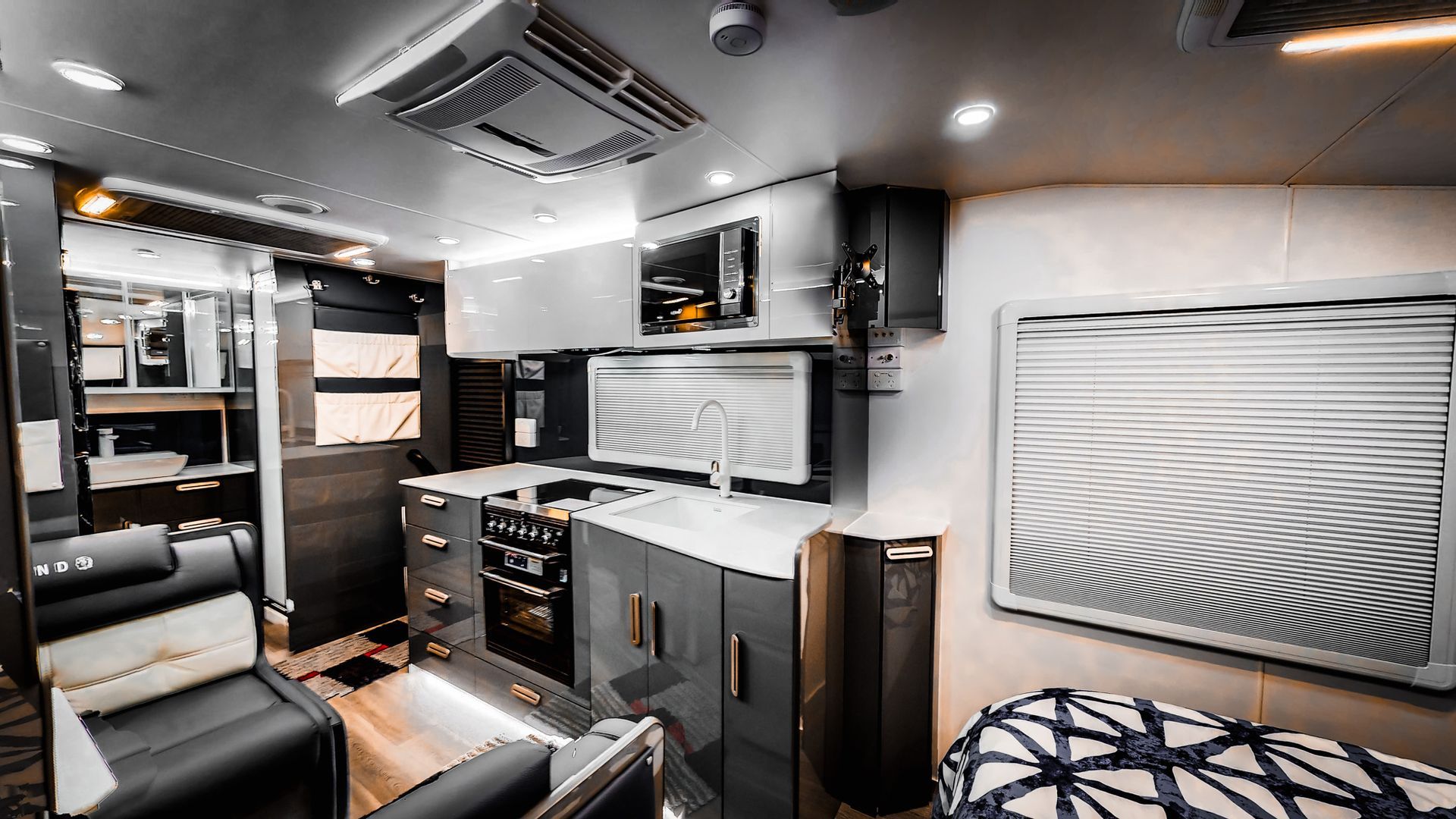

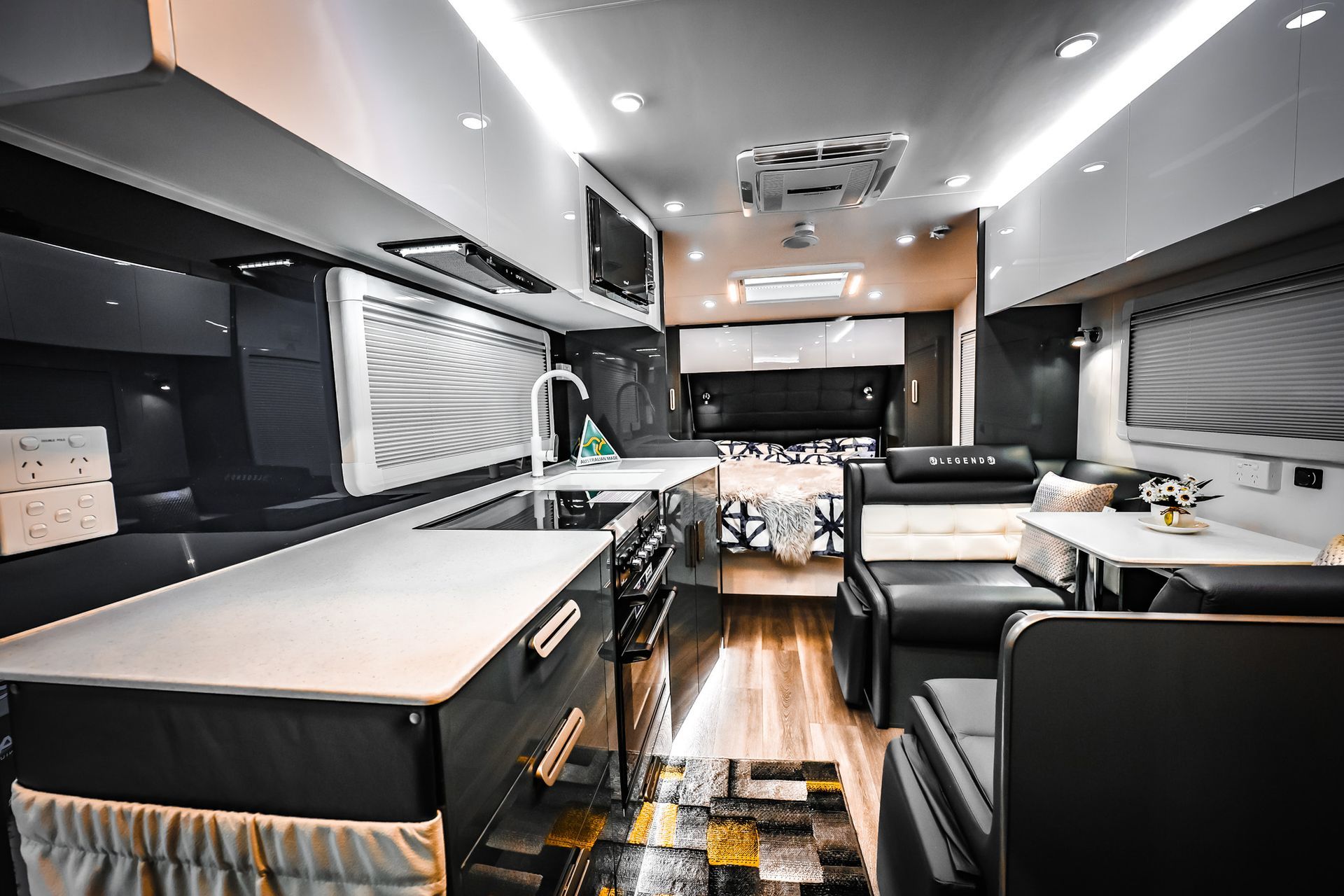

Beautifully finished joinery and rich 100% Leather upholstery project an upmarket ambience, while the high 1.96m ceiling adds to the welcoming and spacious atmosphere.

The customisable design of our Legend Drawer Systems supports the latest living trends and opens a wide range of design possibilities. The side panels are straight both on the inside and outside and are impressively slim at just 12.8 mm.

This means they can be integrated harmoniously into any furniture and will give you more usable space. Legend Caravans Drawer system leads the way in terms of technology. Fitted with the SPECIAL cabinet profile, boasts low opening forces, a synchronised feather-light glide and gives you the flexibility to implement three different motion technologies. The soft-close function adapts to the motion technology employed.

Solid Surface Premium Acrylic Benchtops, High Performance 100% Acrylic solid Surface – all Legend caravans come standard with our premium benchtops which there are …

·     Hygienic & Non-Porous - Does not support growth of mould, mildew or bacteria and is stain resistant. Solid surface is safe for food preparation and is certified by NSF. Suitable for spaces where hygiene is essential.

·     Inconspicuous seam - Seamless surface joints with no crevices to trap bacteria and dirt.

·     Easy Maintenance – Easy to Clean and does not require sealing or special products for maintenance.

·     Thermoformable & Versatile – Can be thermoformed, moulded, routed and shaped to accommodate both vertical and horizontal applications.

Legend Caravans Plumbing - Legend Caravans has fully qualified Plumbers. We have the experts that you can be confident that every aspect of the plumbing inside your caravan is operating efficiently and effectively. Legend Caravans uses latest technology and Brass

fittings to all its plumbing. We are first manufacturer in the industry to include Brass fittings to the caravan Hot and Cold water. Legend Caravans plumbers have over 60 years of

experience in caravan industry. All our caravans that are fitted with gas are tested and provided with gas certificate. Our Plumbing team is all about finding and providing solutions to all of your caravan plumbing needs. When caravans are fitted with outdoor cooking, we provide hot and cold water connection for easy access.

Electrical – Legend Kick Back is equipped with Premium electrical system.

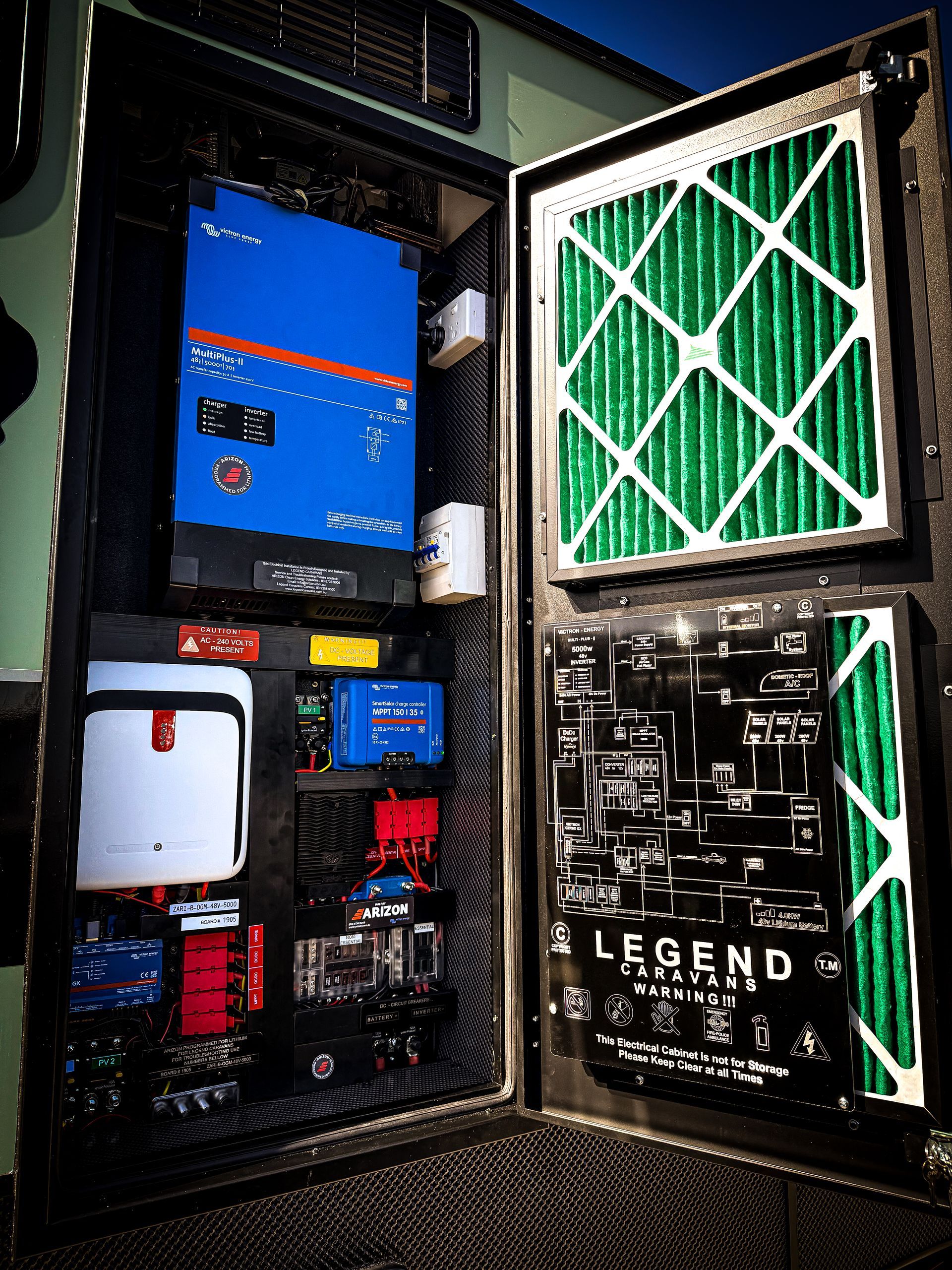

 Victron Off-Grid Battery Management system is a compact and designed for RV environments where simplified installation is essential.

Enjoy More time away with Victron Off-Grid System is specificly created for our Caravans.

 Victron Multiplus-II 3000W, Twin Solar Charge Controller MPPT 30, Victron Orion Isolated DC-DC, Victron SmartShunt, Victron Cerbo, Victron GX Touch 50, Victron Battery Protect 65A, 4 x Midi Fuse Holders, 1 x Negative Bus Bar, 2 x Mega Fuse Holders, 1 x 6 Blade Fuse Blocks, 1 x 12 Blade Fuse Blocks, 1 x Battery Circuit Breaker, 1 x Inverter Circuit Breaker

All this is taken care of with the 400ah Lithium Battery, and mix of 200W solar panels and control modules. ( note - depending on the size of the caravan solar panels can vary in size and capacity ).

Today, Victron design, manufacture, and source world class products from leading edge companies.

In recent times Victron Off-Grid  has embarked on its own manufacturing program. We saw the need to control our own destiny and produce high-end products that the Australian market place was demanding.

This program has led to Victron manufacturing its own Electrical Board Systems, and Lithium battery systems. Including our own branded products.
